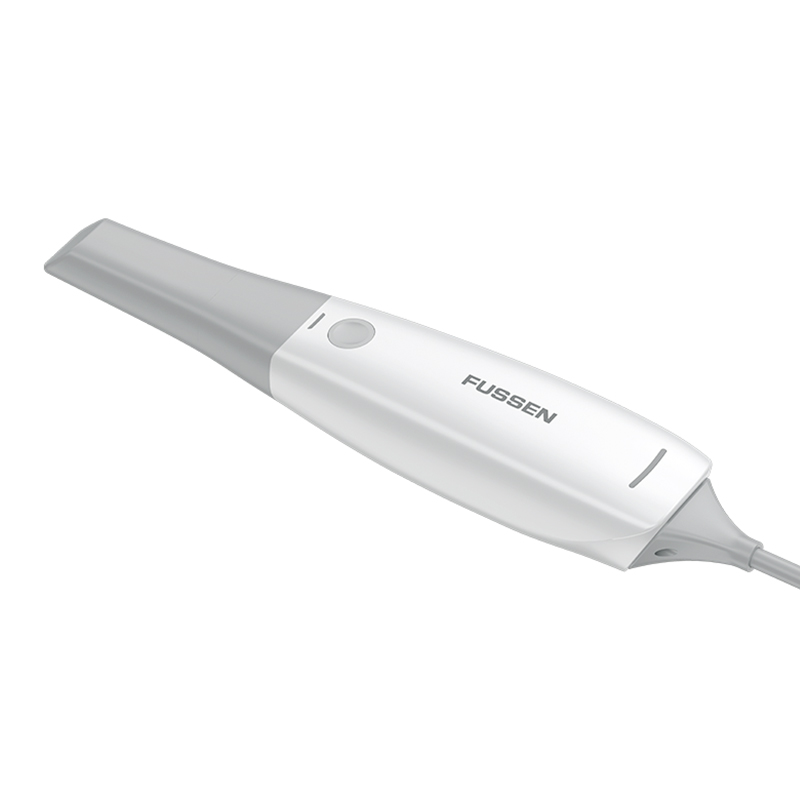

S6500 Intraoral Scanner

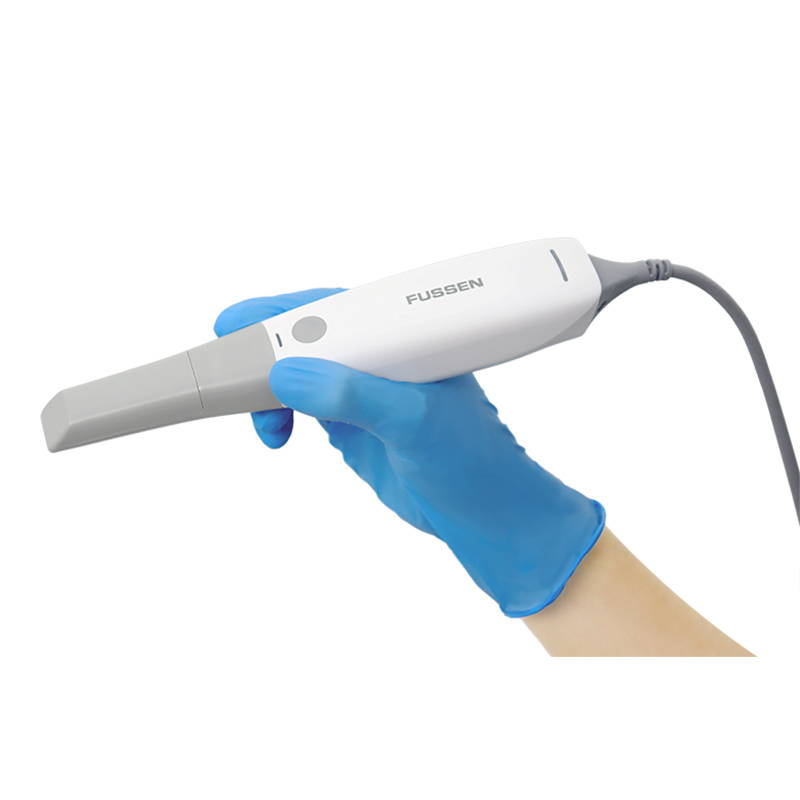

Smaller Size Grants Easier Grip
Lighter Design Reduces Operational Fatigue
- As light as 240g
2x Speed Up Than The Previous Version
- 20 FPS
- 16*13mm FOV

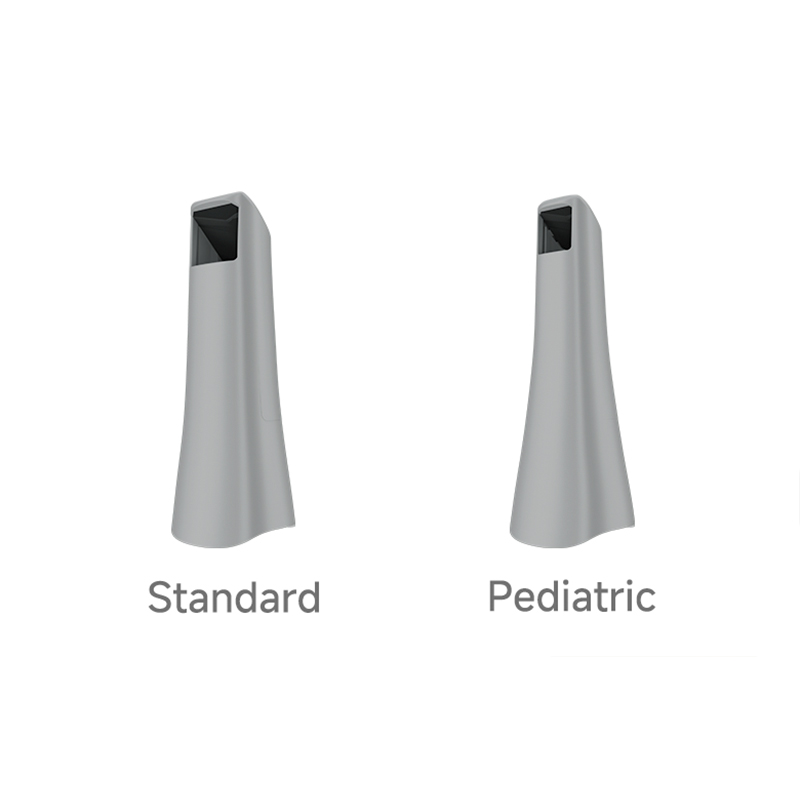

2 Scanning Tip Size Options
- Meet different clinical needs

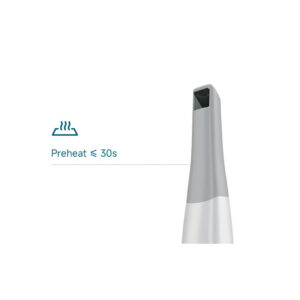

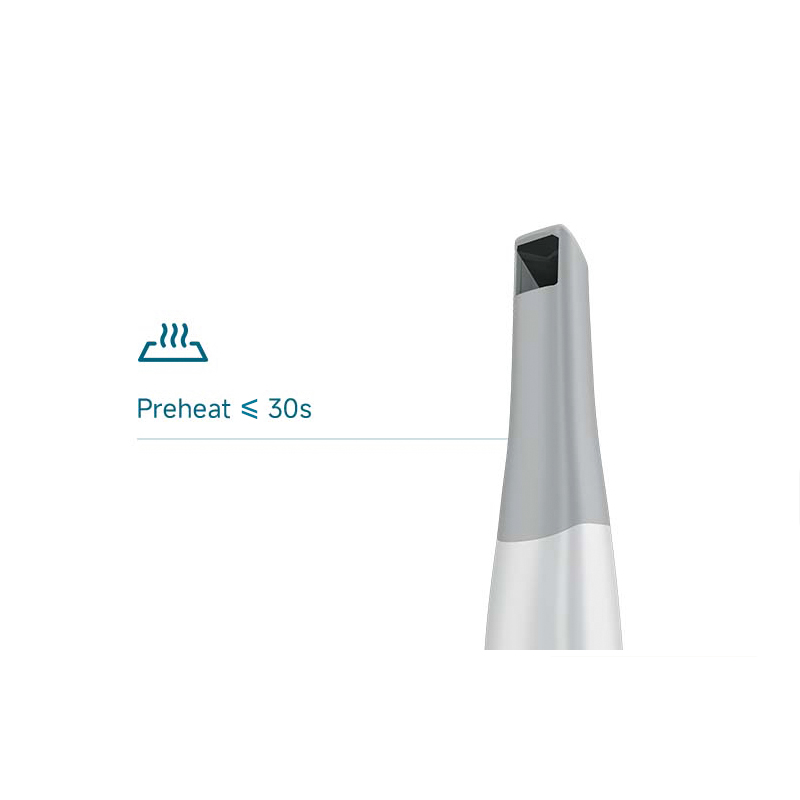

Built-in Anti-fogging
- Preheat in less than 30s, making continuous scanning more efficient
Autoclavable Scanning Tips
- Sterilization at 134°C
- More than 100 times
Faster, Lighter, and Smarter!
The S6500 Intraoral Scanner only weighs 240g. Digital impression acquisition faster and easier than ever!
Effortless And Precise Scanning From Start To End

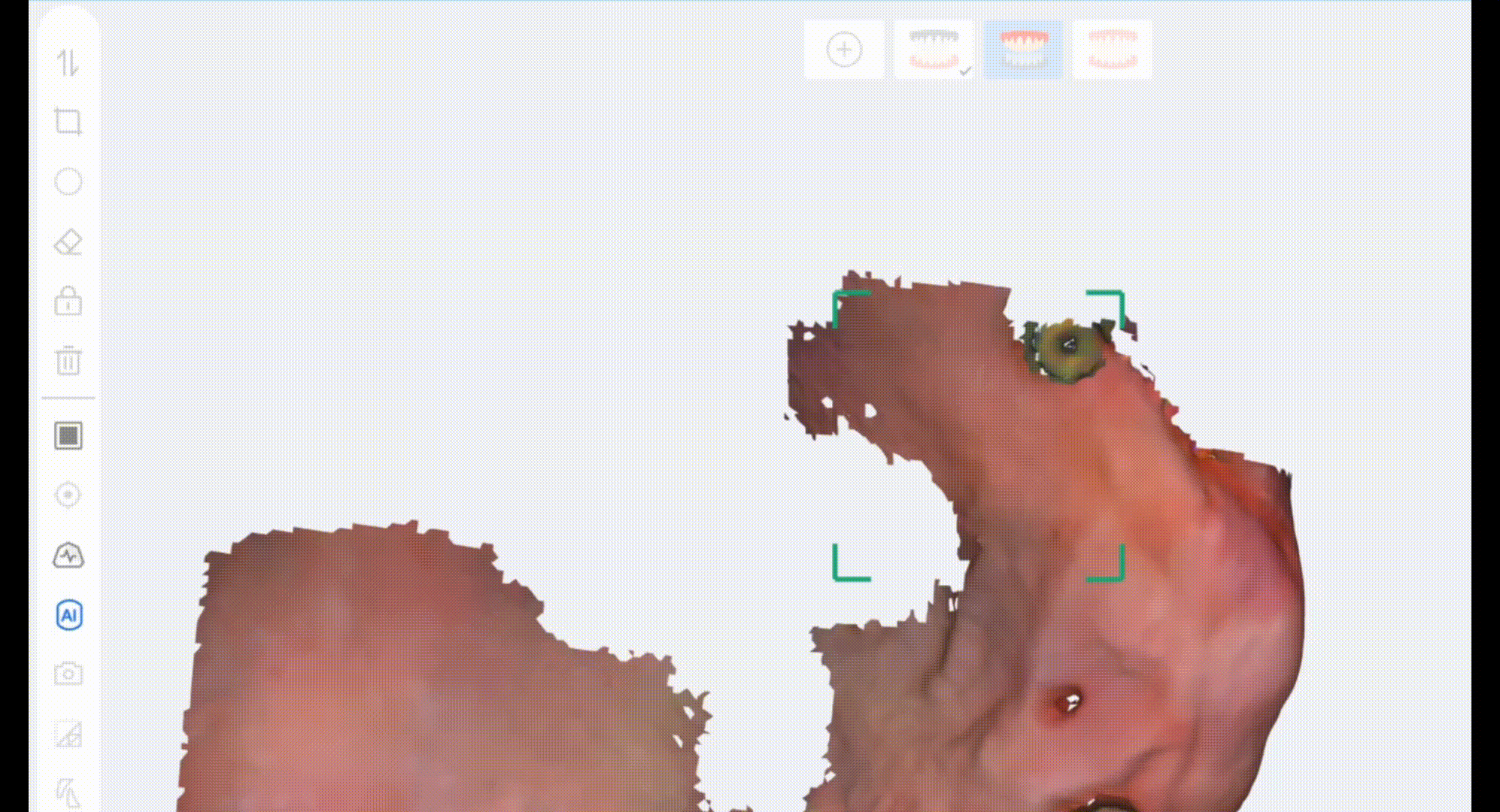

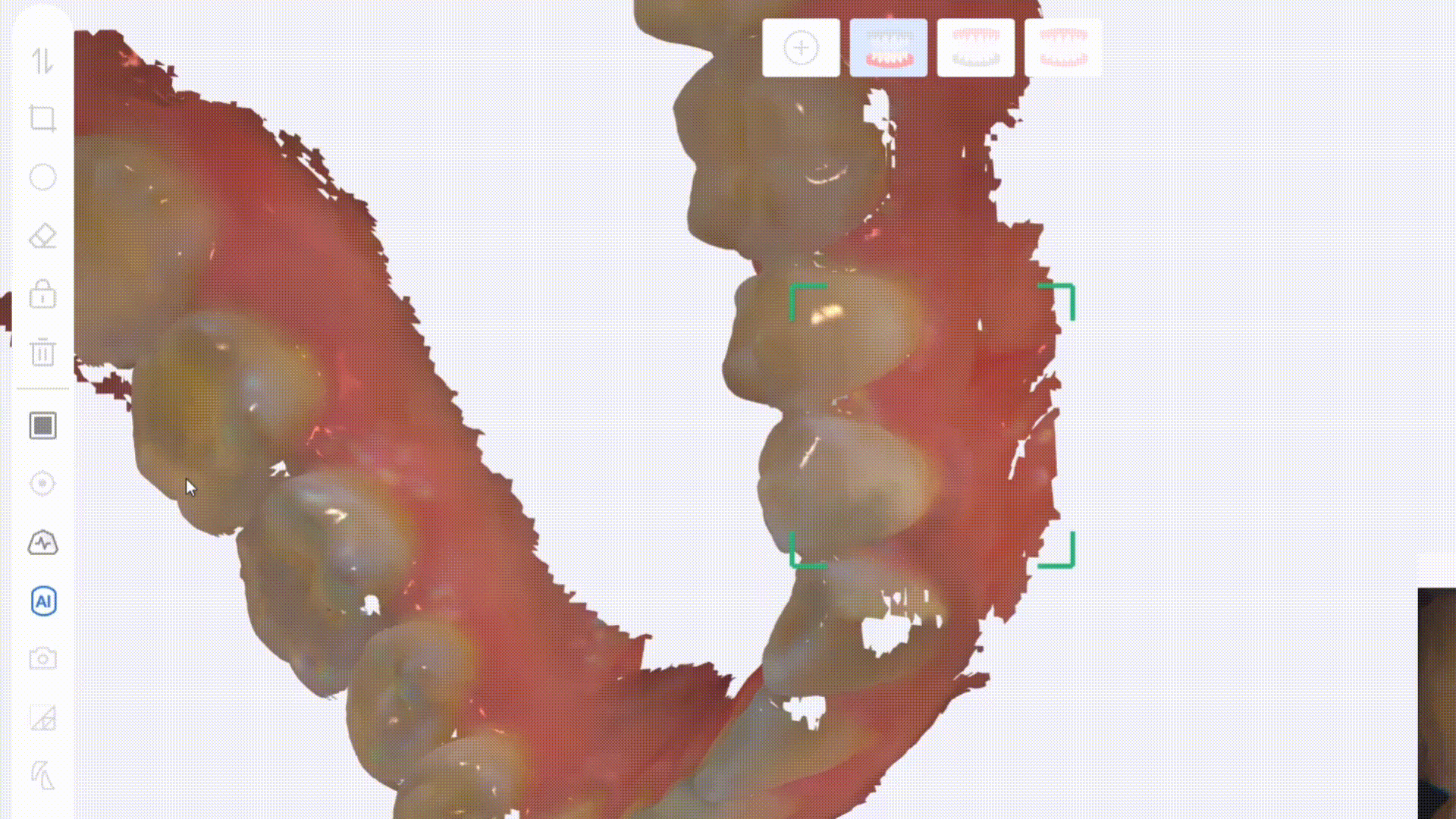

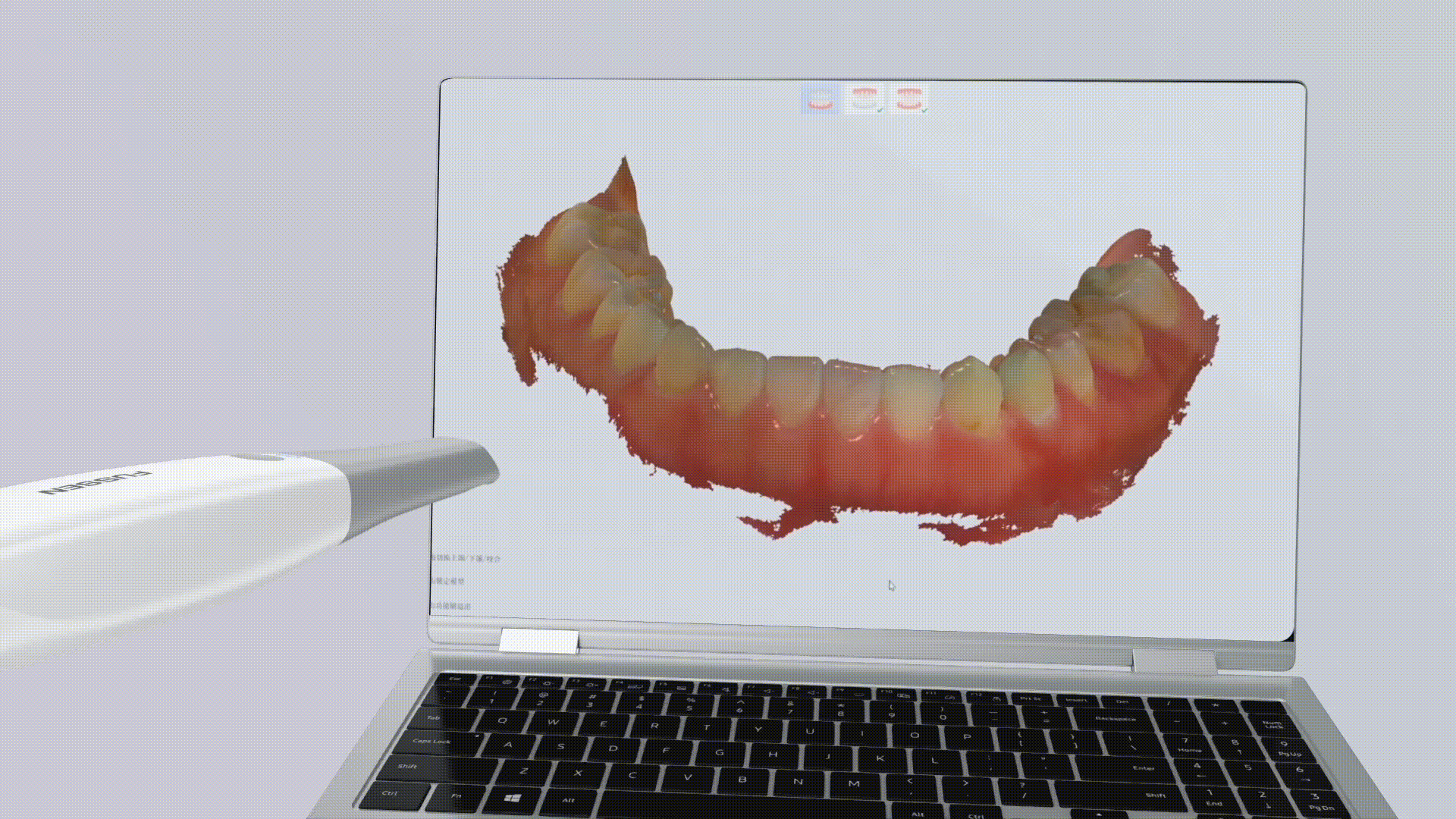

Full-arch Scanning in 25s, Faster Than Ever
Capture every detail with 20 FPS and advanced algorithms, boosting scanning efficiency and patient care

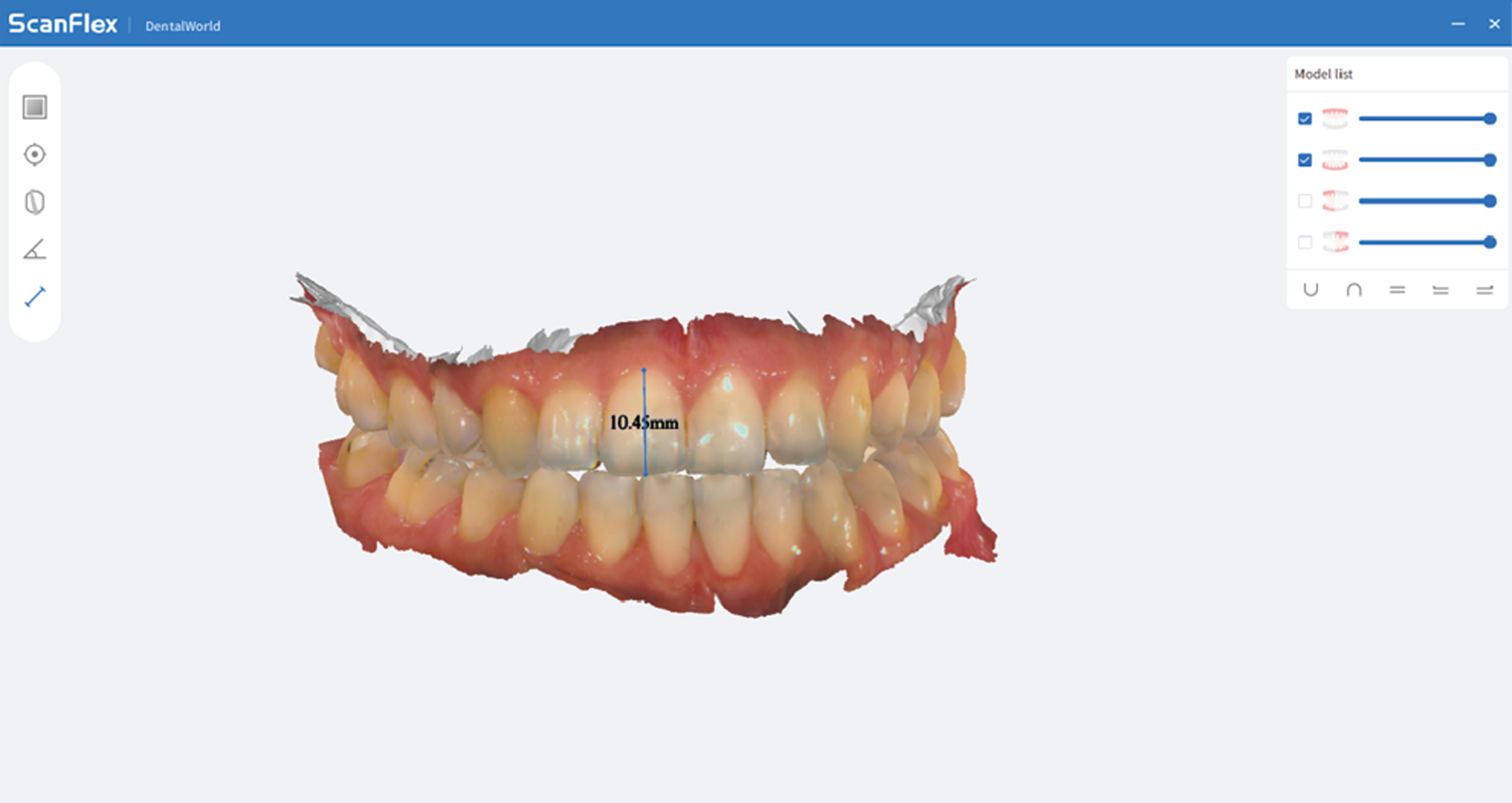

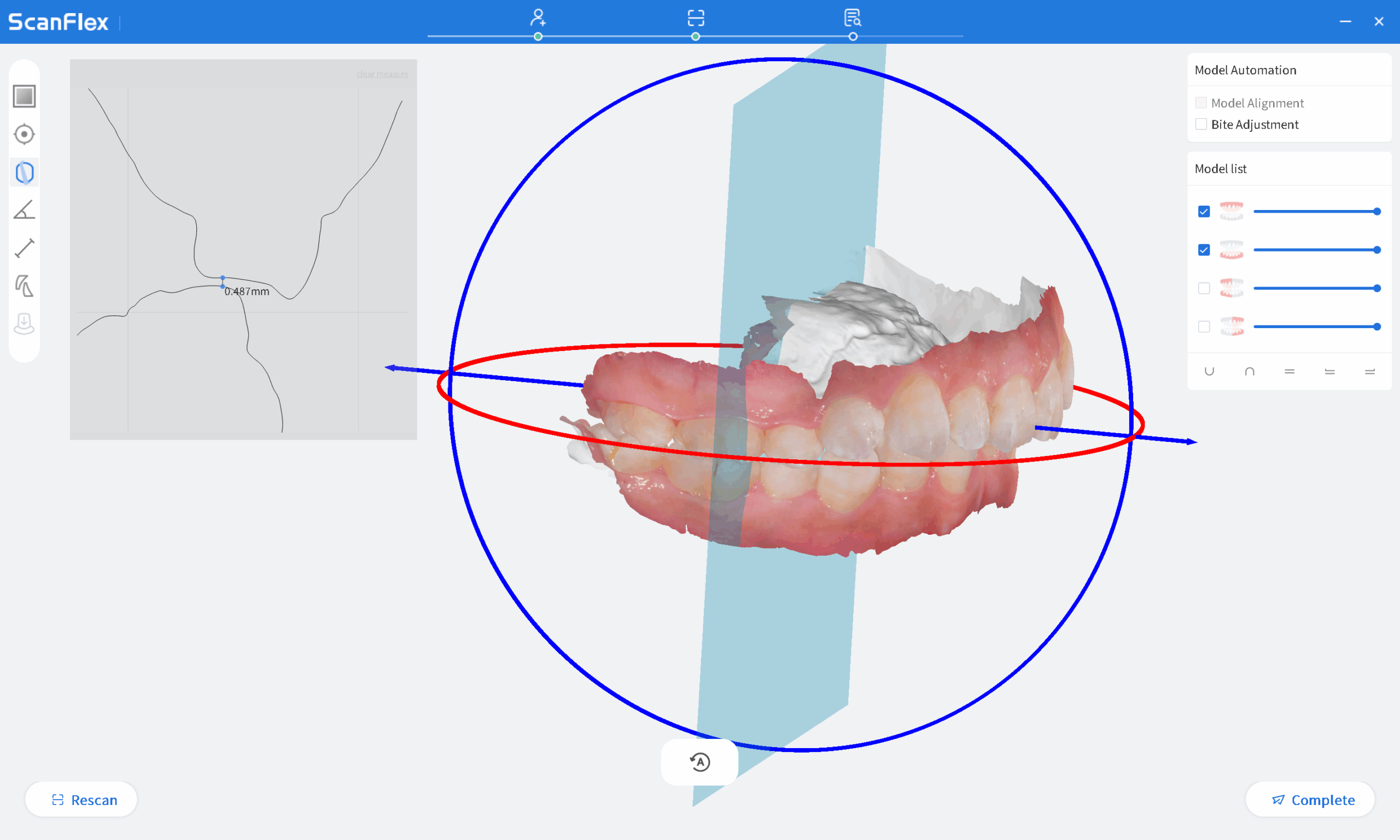

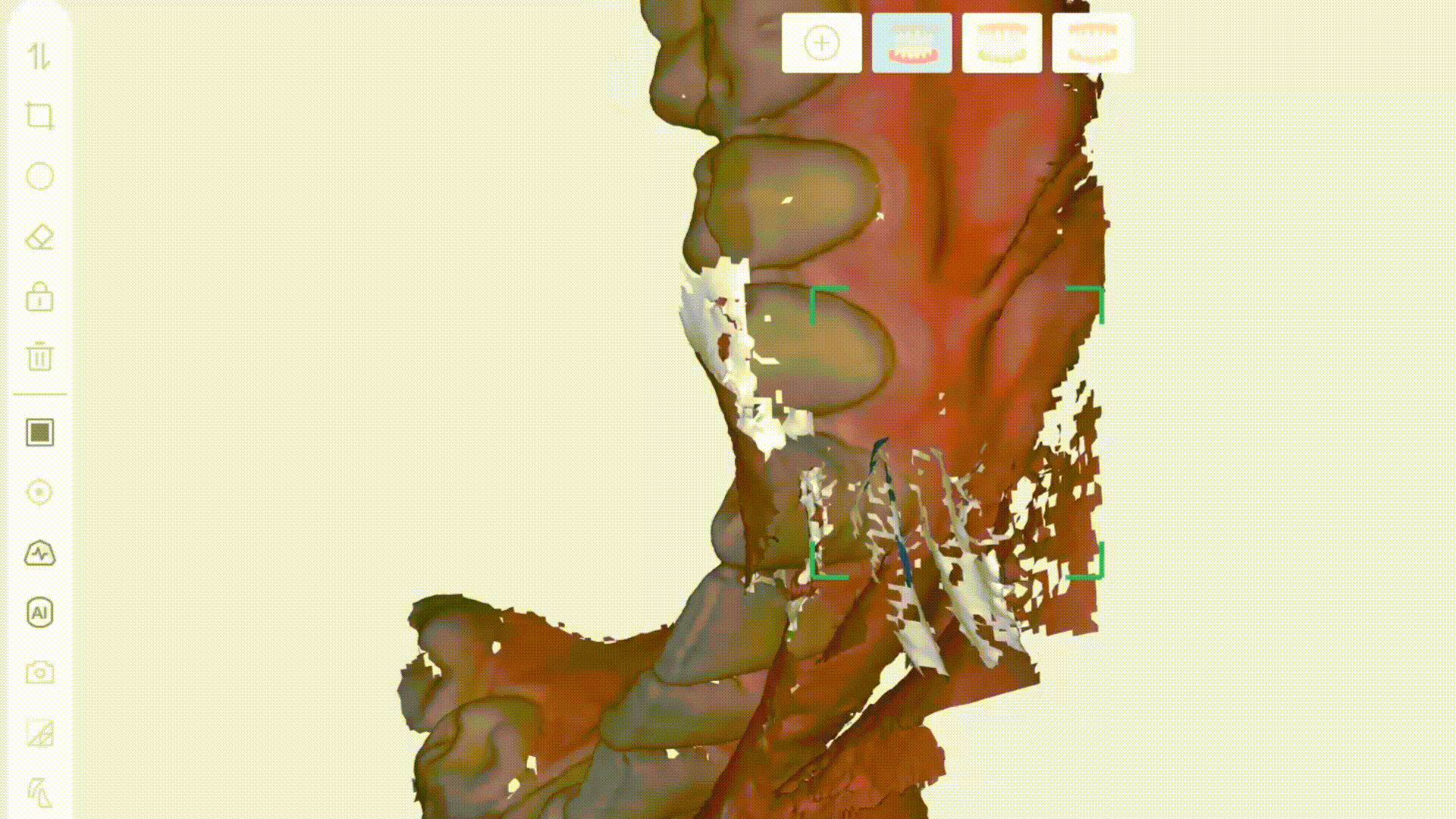

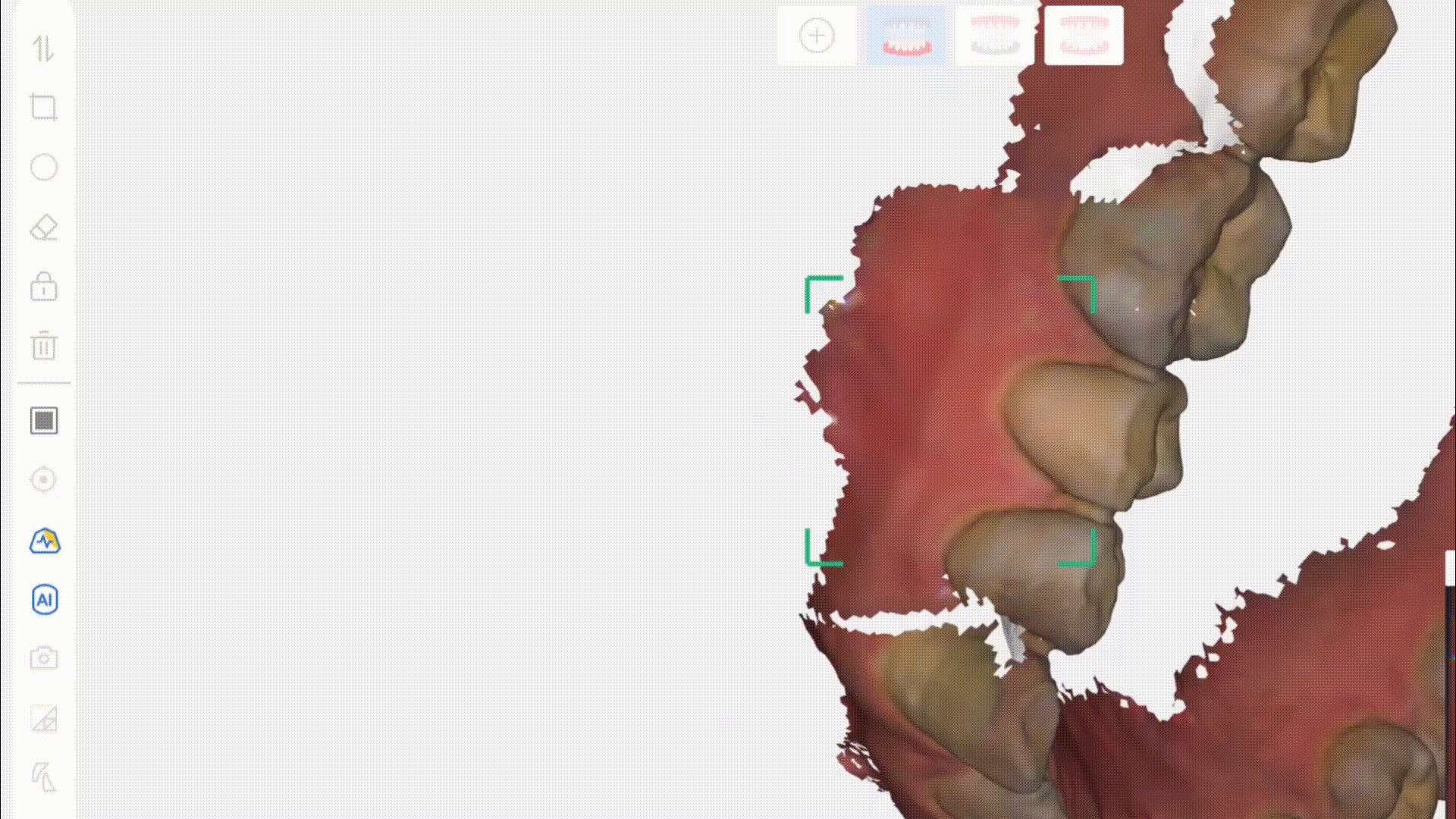

More Precise on Various Indications
The advanced algorithms significantly reduce stitching errors, achieving finer results

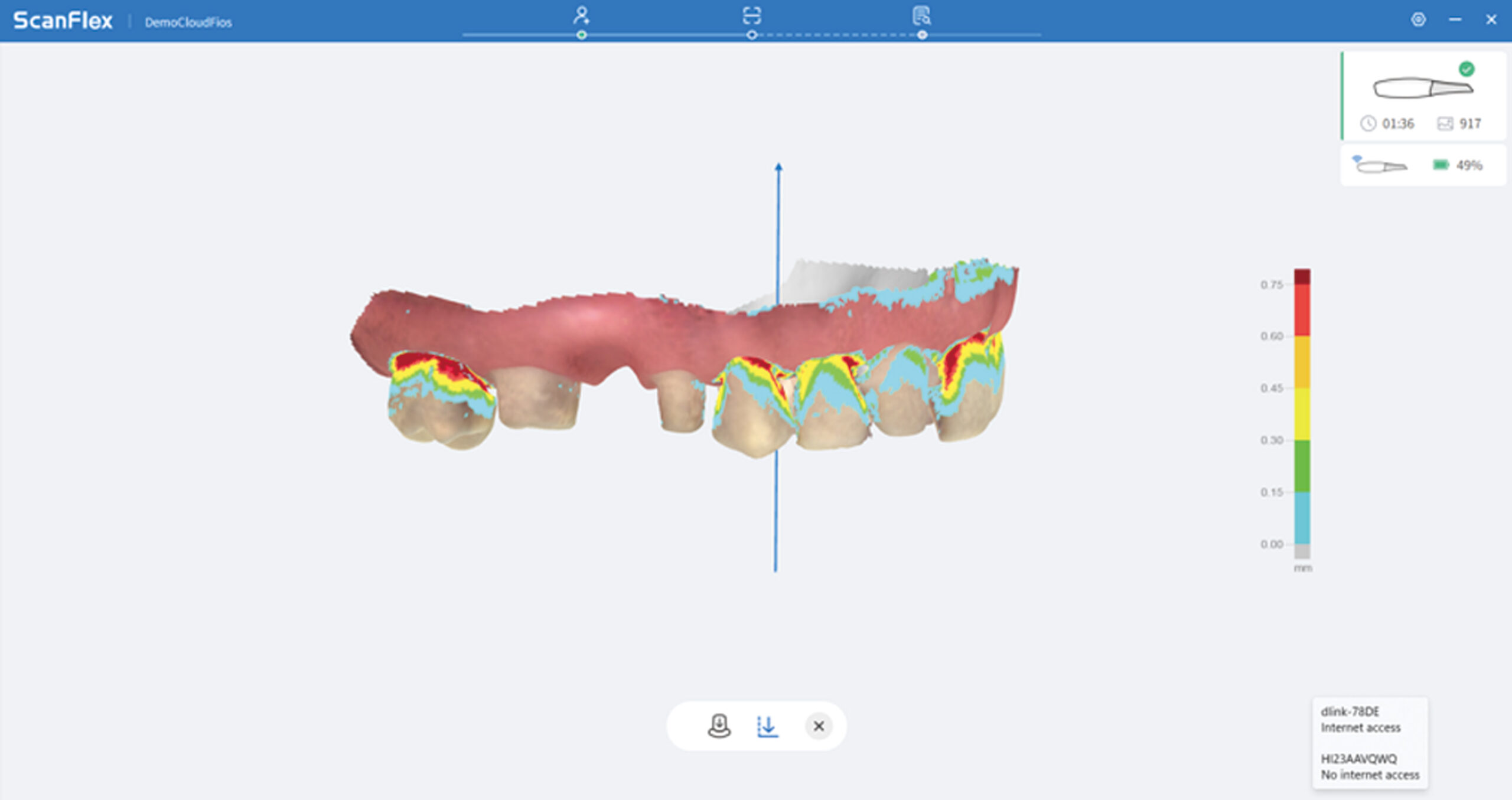

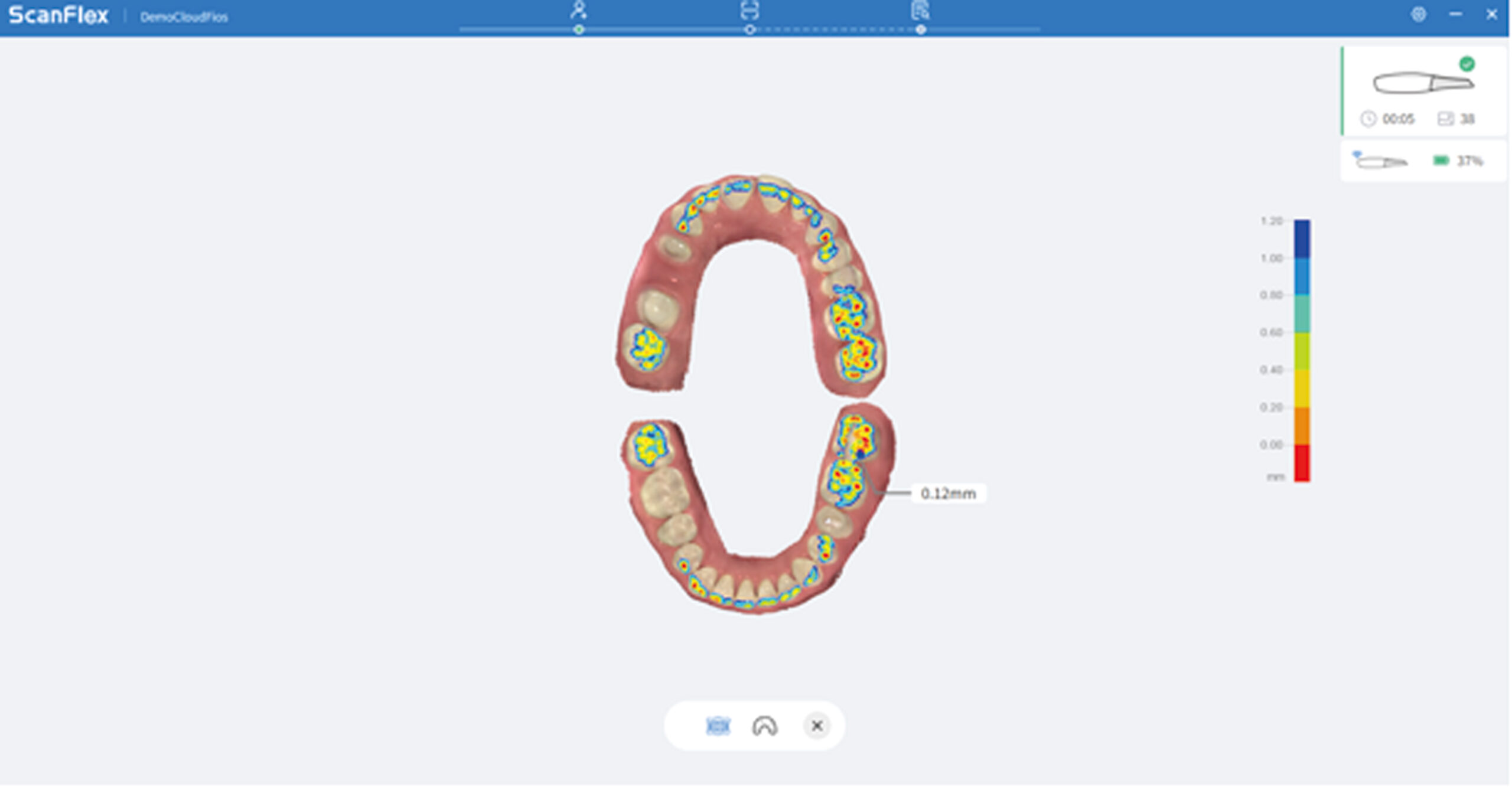

Data Reliability Monitor
Detects data quality in real-time during scanning for more precise results

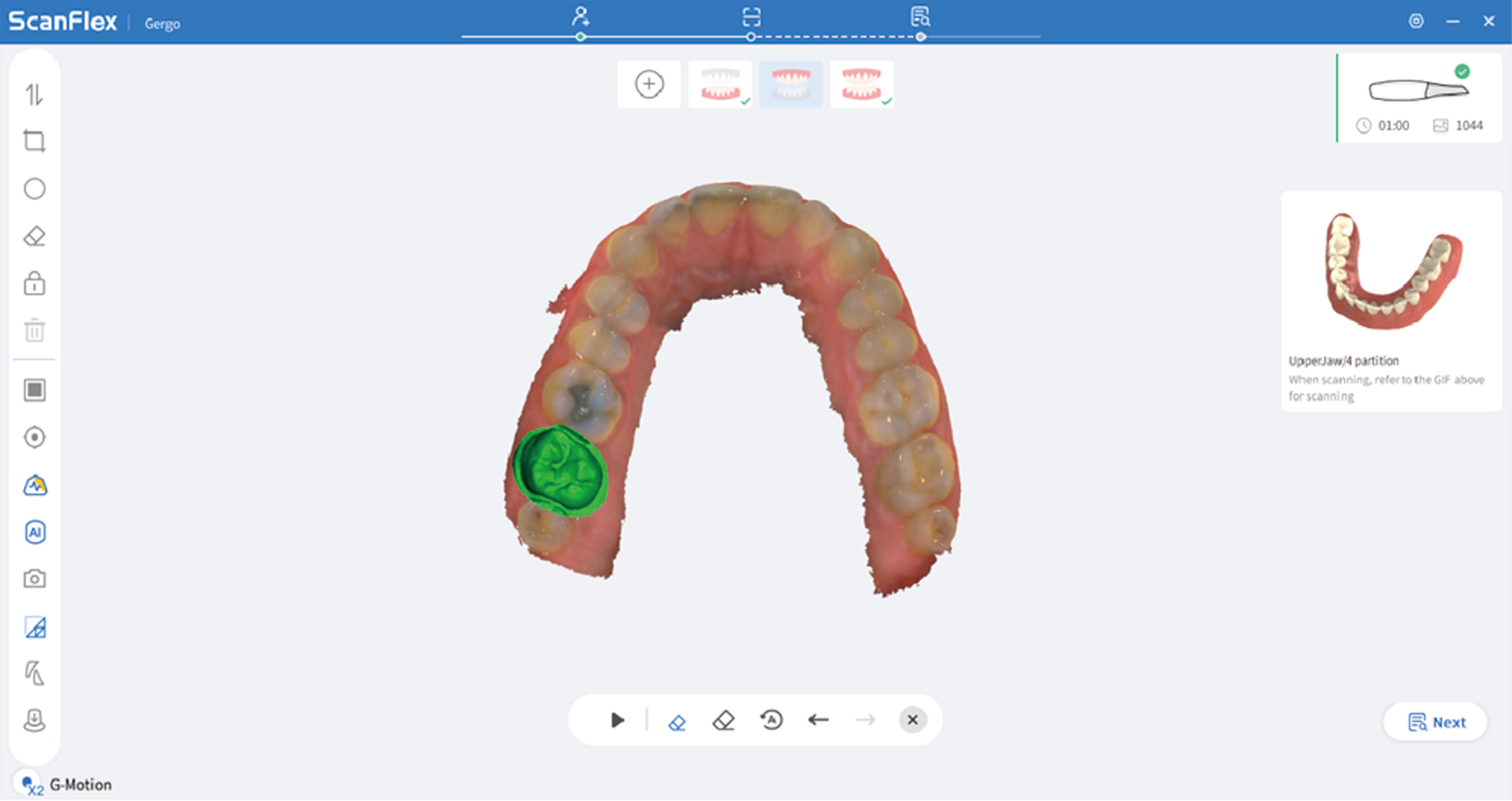

G-Motion
Prevents cross-infection and brings an easier scanning experience
Technical Specifications
| Component | Parameter |
|---|---|
| Scanning Principle | Structured Light (Video) |
| Accuracy (Single unit) | 10μm(±1.1μm) |
| Handpiece Dimension | 247 (L) * 43 (W) * 35 mm (H) |
| Handpiece Weight | 240g |
| Anti-fogging Technology | Actively Heated tip |
| Scan Depth | 0-18mm |
|
Scanning tip Dimensions Scan area (FOV) Maintenance Method Autoclavable |
Standard Tip: 95.3 * 22.5 * 16.6 mm Pediatric Tip: 94.0 * 17.9 * 13.2 mm Standard Tip: 16.0 * 13.0 mm High temperature and pressure; No less than 100 times |
| Cable Length | 2.0 meter |
| Connection | USB 3.2 |
| Data Format | .STL,.PLY,.OBJ |
Recommended System Requirements
| CPU | Intel i7 or above |
| RAM | 32 GB or above |
| Hard Disk | 1 TB SSD or above |
| Graphic Card | NVIDIA GeForce RTX 4060 6GB or above |
| Monitor | 1920 * 1080 |
| Operating System | Windows 10/11 Professional (64 bit) |
| USB | USB 3.2 high-speed port |
